For more than 60 years, Dainippon Screen has pioneered the development of imaging solutions to meet the evolving needs of printers all over the world. By successfully combining world class research and development with its renowned manufacturing resources, Screen ensures that despite the accelerating pace of change, the solutions that it provides help its customers stay at the forefront of their chosen markets.

The machinery built by Screen has established a strong reputation for quality and reliability and today, Screen’s computer-to-plate and digital printing solutions combines those same build qualities with sophisticated automation to give the lowest total cost of ownership in the industry.

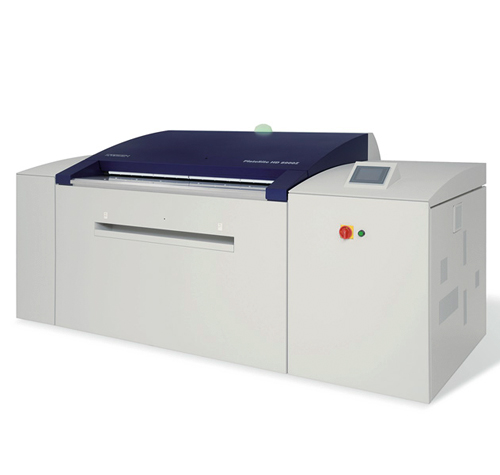

PlateRite HD 8900

The new Screen PlateRite HD 8900 series comprises the Z, S, and E models, each one designed to meet the needs of different production environments.

The top-end, high-output PlateRite HD 8900Z can image over 65 plates an hour (1,030 x 800 mm plate sizes at a resolution of 2,400 dpi). The S and E models deliver 43 and 34 plates an hour respectively, with the additional capability to combine high-precision halftone dots with a 4,000 dpi output to produce photo-quality printing. 3D lenticular output mode is available on all models to support crisp 3D printing. Features such as these support high value-added printing to enhance differentiation in the marketplace.

Considerable flexibility is a strong feature of this new Screen PlateRite series. All models can handle a variety of plate sizes from 304 x 305 mm to 1,165 x 950 mm making it ideal to support a wide range of offset presses. In addition, a new autoloader design features improved operability and flexibility. The ability to load plates during continuous exposure, results in increased production volumes and the ability to keep pace with the needs of multiple jobs and high-speed presses.



Technical specification

Product name PlateRite HD 8900Z PlateRite HD 8900S PlateRite HD 8900E
Model name PT-R8900
Light source  1024-channel laser diode 512-channel laser diode
Plate size Max.: 1165 x 950mm; Min.:304 x 305mm
Exposure size Max.: 1165 x 938mm
Resolution 1200/2400/2438/2540dpi 1200/2400/2438/2540/4000dpi
(4000dpi is only available when the high resolution option is selected)
Productivity 67 plates/hr at 2400dpi (1030x800mm plates)
80 plates/hr at 2400dpi (650x550mm plates)
43 plates/hr at 2400dpi (1030x800mm plates)
55 plates/hr at 2400dpi (650x550mm plates)
33 plates/hr at 2400dpi (1030x800mm plates)
44 plates/hr at 2400dpi (650x550mm plates)



Autoloader Technical specification

Product name SA-L8900 MA-L8900
Compatible models PlateRite HD 8900Z/S/E
No. of cassettes 1 Up to 5 cassettes (3 as standartd)
Cassette capacity 100 plates (0.15 to 0.3mm thickness)
75 plates (more than 0.3mm thickness)
100 plates per cassette (0.15 to 0.3mm thickness)
75 plates per cassette (more than 0.3mm thickness)
Plate size Max.: 1165 x 950mm; Min.:304 x 305mm
Plate thickness 0.15 to 0.4mm

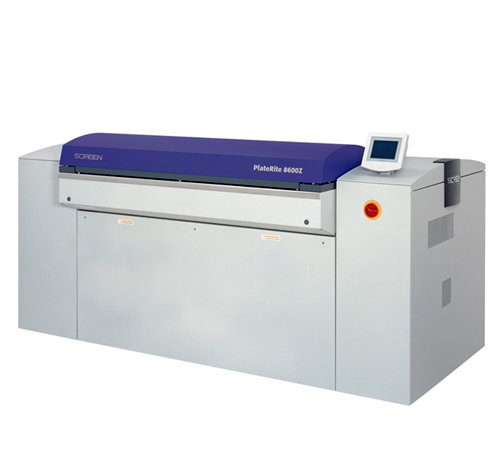

PlateRite HD 8600N-E/S/Z

The new generation PlateRite 8000N series thermal CtP recorders from Screen are the successors to the world leading PlateRite 8000 Series. Many years of experience and positive feedback from over 14.000 happy customers have led to further enhancements on design, specification and environmental friendliness.

The PlateRite 8600N-Z/S recorders output B1-size plates up to a blistering 23 B1-size plates per hour*. The PlateRite 8600N-E can output up to 14 B1-size plates per hour*. *1,030 x 800 mm (40.5 x 31.4") plates at 2,400dpi.

High resolution
The PlateRite 8600N-Z delivers high-resolution 4,000 dpi support. This is perfect for everything from high-resolution art printing to the accurate reproduction of small text sizes like those required for bond and other certificate printing. This also enables the PlateRite 8600N-Z to output high-quality 4,000 dpi 3D lenticular printing plates.

Productivity
(1,030 x 800 mm (40.5" x 31.4") plates, at 2,400 dpi)
